Grey Ductile Iron Flanged Swing Check Valve 1.0/1.6mpa Rubber Wedge

China • Yuanda Valve Group Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Grey Ductile Iron Flanged Swing Check Valve 1.0/1.6mpa Rubber Wedge

  • 1
  • 2

Brand Name : Y

Model Number : H44X-16Q

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10000 pcs per year

Delivery Time : 5-8 work days

Packaging Details : wooden box 1200*1100*1100

Product name : Swing Check Valve

Color : Customer's Request,blue

Body material : Grey Iron / Ductile Iron

Connection : Flange Ends

Working temperature : -10 to 80℃

Media : Water

Pressure : 1.6mpa

Size : DN50 To DN200

Disc : NBR+Q235

Standard : GB

Contact Now

Ductile Iron Pressure 1.0/1.6 Mpa Rubber Wedge Flanged Swing Check Valve

Introduction

The parts design of H44X (SFCV) series rubber flap check valve is mainly composed of three main parts: valve body, bonnet and rubber flap

Usage and characteristics

The rubber flap in the valve is made of steel plate, steel rod and reinforced nylon cloth as the substrate, and the outer layer is covered with rubber. The service life of the valve flap can reach 1 million times. H44X (SFCV) series rubber flap check valve adopts full flow area design, which has the characteristics of small head loss, not easy to accumulate sundries, simple maintenance and so on. H44X (SFCV) series rubber flap check valve is mainly applicable to horizontal water supply and drainage system. It can be installed at the water outlet of the pump to prevent backflow and water hammer damage to the pump. H44X (SFCV) series rubber flap check valve can also be installed on the bypass pipe of the inlet and outlet pipe of the reservoir to prevent the pool water from flowing back to the water supply system. Check valves are generally suitable for clean media, not for media containing solid particles and high viscosity.

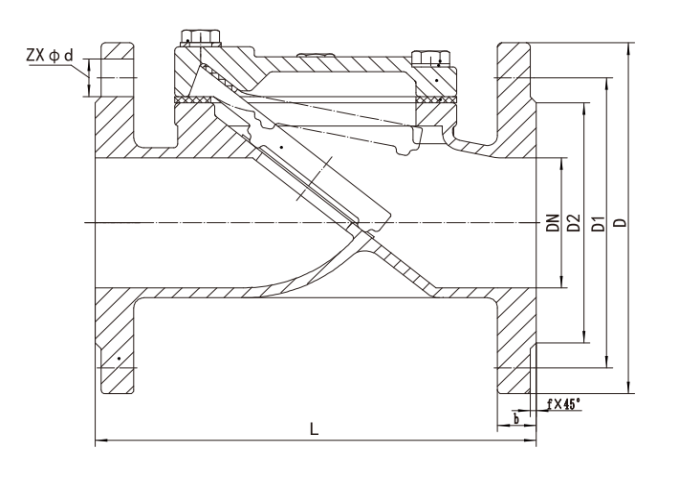

Dimension

mm L D D1 D2 b-f Z-фd
50 203 165 125 100 19-3 4-ф19
65 216 185 145 120 19-3 4-ф19
80 241 200 160 132 19-3 8-ф19
100 292 220 180 155 19-3 8-ф19
125 330 250 210 185 19-3 8-ф19
150 356 285 240 210 19-3 8-ф23
200 495 340 295 262 20-3 12-ф23

Feature

Body Ductile Iron
Bonnet Ductile Iron
Disc NBR+Q235+Nylon fiber mesh sleeve
Gasket NBR
Norminal pressure 1.6 mpa
sheel test (water) 1.76 mpa
seal test (water) 2.4 mpa
temperature -10 to 80 ℃
