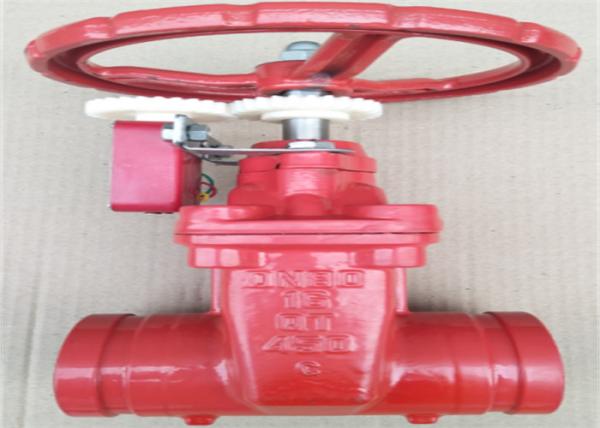

Handwheel Gate Fire Protection Valves 1.6 Mpa Card Slot Non Rising

China • Yuanda Valve Group Co., Ltd.

Handwheel Gate Fire Protection Valves 1.6 Mpa Card Slot Non Rising

Brand Name : Y

Model Number : XZ85X-16Q

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10000 pcs per year

Delivery Time : 5-8 work days

Packaging Details : wooden box 1200*1100*1100

Product name : Fire Protection Valves

Body material : Ductile Iron /Grey Iron

connection : Card slot

Power : handwheel

Seal : NBR / EPDDM

Temperature : -5℃~80℃

medium : water

pressure : 1.0~1.6mpa

Contact Now

Fire signal Card slot gate valve Non-rising 1.6 mpa water Fire Protection Valves

Introduction

The opening and closing part of the fire signal soft seal gate valve is the gate. The movement direction of the gate is perpendicular to the fluid direction. The gate valve can only be fully opened and closed, not adjusted and throttled. It can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil products, liquid metal and radioactive media. In addition to the advantages of elastic seat seal gate valve, the fire signal soft seal gate valve can visually display the opening degree of the valve, so as to judge the opening degree of the valve at a distance and take corresponding measures in time. The opening and closing is fast and reliable, so it is often used in fire protection system. The ram has two sealing surfaces. In the common mode, the two sealing surfaces of the ram valve form a wedge, and the wedge angle varies with the valve parameters, usually 50. When the medium temperature is not high, it is 2 ° 52 '. The gate of wedge gate valve can be made into a whole, which is called rigid gate valve; It can also be made into a ram that can produce slight deformation to make up for the deviation of the angle of the sealing surface in the processing process. This kind of ram is called elastic ram. Fire signal soft seal gate valve is generally installed horizontally.

Characteristics of fire signal soft seal gate valve

Integral rubber coating: the ram is internally and externally coated with high-quality rubber. The European rubber vulcanization technology enables the vulcanized ram to ensure the geometric size, and the rubber and ductile iron casting RAM are firmly connected, not easy to fall off and have good elastic memory.

Precision casting valve body: the valve body is cast, and the geometric size makes it possible to ensure the tightness of the valve without any finishing inside the valve body.

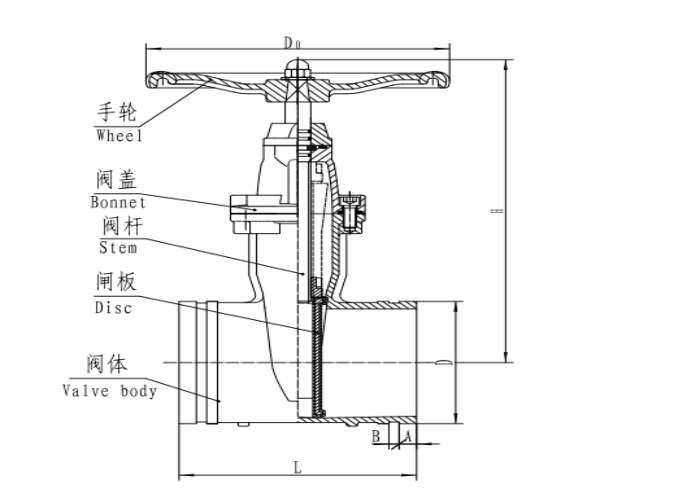

Dimenison

Size L D D1 D2 B F Zxфd
50 178 ±1.5 165 125 99 19 3 4xф19
65 190 ±2 185 145 118 19 3 4xф19
80 203 ±2 200 160 132 19 3 8xф19
100 229 ±2 220 180 156 21 3 8xф19
125 254±2 250 210 184 22 3 8xф19
150 267 ±2 285 240 211 22 3 8xф23
200 292 ±2 340 295 266 23 3 12xф23
250 330 ±3 405 350/355 319 26 3 12Xф28
300 356±3 460 400/410 370 28.5 4 12Xф28

Handwheel Gate Fire Protection Valves 1.6 Mpa Card Slot Non Rising

Handwheel Gate Fire Protection Valves 1.6 Mpa Card Slot Non RisingHandwheel Gate Fire Protection Valves 1.6 Mpa Card Slot Non Rising
